Name: Low Temp. Hydraulic Oil L-HV 46#
Brand: YUANGEN
SKU: l-hv-46
Availability: InStock

Home

Products

Hydraulic Oil

Low Temp. Hydraulic Oil L-HV 46#

Product Description

Low Temp. Hydraulic Oil L-HV is a high-performance product based on Group II base oil formulation that provides excellent protection for equipment over a wide range of temperatures. Oil decomposition is inhibited effectively under high temperature or mechanical stress conditions, so, it is suitable for most mobile equipment and other applications with large fluctuations in ambient or operating temperature.

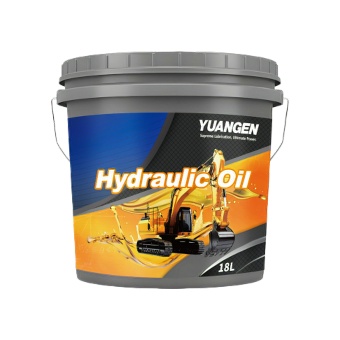

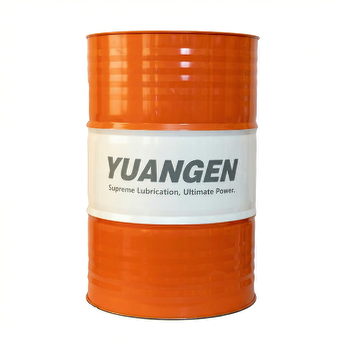

• Packaging: 18L, 200L

• Customized packaging available upon request

Specifications and Approvals

• DIN 51524 Part III
• ISO 11158 HV
• Denison HF-0/HF-1/HF-2
• Bosch Rexroth 90220-01
• Eaton Vickers 35VQ25
• Cincinnati Machine

Performance Benefits

• Extends the service life of hydraulic oil

saving maintenance costs: Low Temperature Hydraulic Oil L-HV has a high resistance to degradation caused by high temperatures and aggressive environment, thereby helping to extend equipment maintenance cycles. It minimizes sludge for better stability and system cleanliness.
• Excellent wear protection

excellent performance in rigorous test standards Denison T6H20C (dry and wet) and Eaton Vickers 35VQ25 extends the maintenance time of hydraulic system components.
• Protect system efficiency

excellent cleanliness, filtration, water separation, air release and foam resistance - helping to maintain or even improve the efficiency of the hydraulic system. The optimized fluid properties also effectively reduce harmful stick-slip effect.

Applications

Low Temp. Hydraulic Oil L-HV, with a recommended operating temperature of -25°C to 90°C, is suitable for hydraulic systems operating in cold environments or low-temperature conditions, such as construction machinery, industrial equipment, and mobile devices. It features excellent low-temperature fluidity, wear resistance, oxidation resistance, and emulsification resistance, ensuring smooth startup and operation of equipment in low temperatures.

Get detailed product specifications and have our technical experts confirm whether this formulation is suitable for your equipment.

ACCESS PRODUCT DATA

Typical Test Data

Test Item	Result	Method
Density (20℃), g/cm³	0.856	ASTM D4052
Colour Scale	L0.5	ASTM D1500
Kinematic Viscosity (-20℃), mm²/s	2650	ASTM D445
Kinematic Viscosity (40℃), mm²/s	46.2	ASTM D445
Kinematic Viscosity (100℃), mm²/s	8.05	ASTM D445
Viscosity Index	147	ASTM D2270
Pour Point, ℃	-39	ASTM D97
Flash Point (COC), ℃	220	ASTM D92
Water Separability, minutes	20	ASTM D1401

Health, Safety & Environment

The product is unlikely to present any significant health or safety hazard when properly used in the recommended application, and good standards of personal hygiene are maintained.
Avoid contact with skin. Use impervious gloves with used oil. After skin contact, wash immediately with soap and water.
Take used oil to an authorised collection point. Do not discharge into drains, soil or water.

Storage

All packages should be stored under cover. Where outside storage is unavoidable, drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, exposed to direct sunlight or freezing condition

The indicated properties are typical of those obtained with normal production tolerance and do not constitute a specification. All the information contained in this document is considered accurate as of date of printing, and no warranty or representation, expressed or implied is made as to the accuracy of the data and information in this publication. The information contained herein is subject to change without notice.
