Product Description

Ultra Low Temp. Hydraulic Oil L-HS is a high-performance hydraulic oil based on Group Ⅲ base oil formulation that provides excellent protection for equipment over a wide range of temperature variations. It's suitable for the lubrication of outdoor working machinery in cold winter areas.

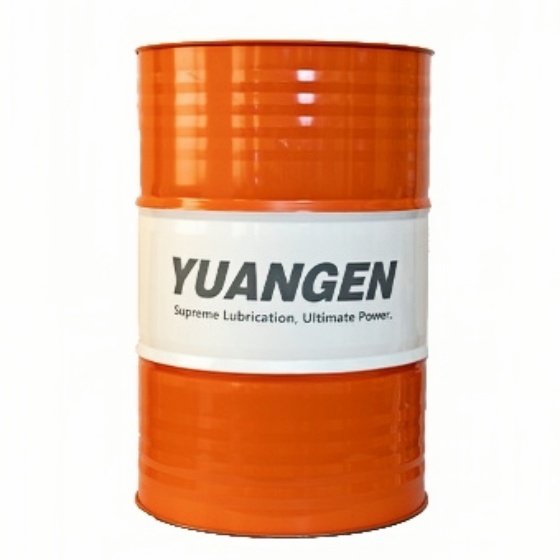

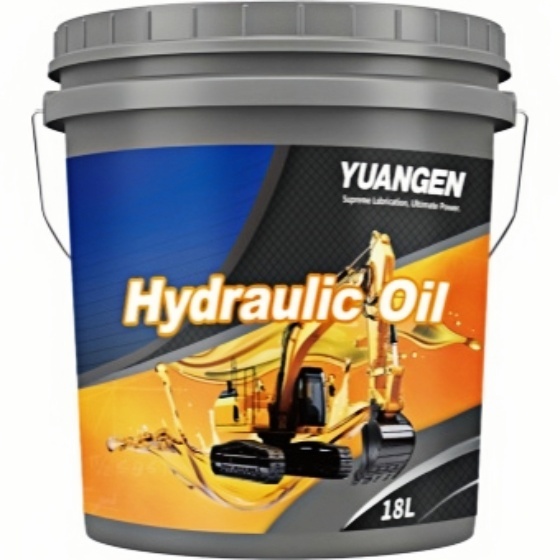

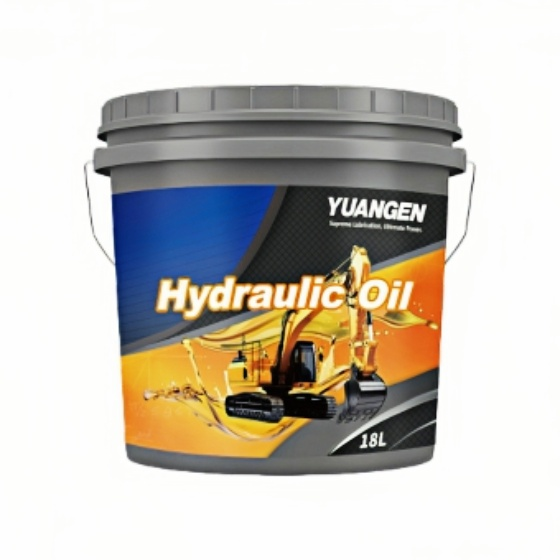

• Packaging: 18L, 200L

• Customized packaging available upon request

Specifications and Approvals

• DIN 51524 Part III
• ISO 11158 HV
• Denison HF-0/HF-1/HF-2
• Bosch Rexroth 90220-01
• Eaton Vickers 35VQ25

Performance Benefits

• Ensure system operation and efficiency at low temperatures

Ultra Low Temperature Hydraulic Oil L-HS has a high viscosity index to ensure that the equipment can be safely started in cold winter conditions without or with a simple heating system. It helps to improve the equipment reliability and operation efficiency of hydraulic systems.
• Excellent wear protection

excellent performance in rigorous test standards Denison T6H20C (dry and wet) and Eaton Vickers 35VQ25 extends the maintenance interval of hydraulic system components
• Protect system efficiency

excellent cleanliness, filtration, water separation, air release and foam resistance – all these properties help to maintain or even improve the efficiency of the hydraulic system. The optimized fluid properties also effectively reduce harmful stick-slip effect.

Applications

Ultra Low Temp. Hydraulic Oil L-HS 46# is specially designed for outdoor operations in extremely cold winter regions. It is ideal for medium and high-pressure hydraulic systems that experience significant fluctuations in ambient temperatures or harsh working conditions. This oil is suitable for applications such as construction, building, mining, oilfield machinery, ships, vehicles, and other hydraulic systems. With a recommended operating temperature range of -35°C to 90°C, it ensures stable and reliable performance under extreme conditions.

Get detailed product specifications and have our technical experts confirm whether this formulation is suitable for your equipment.

ACCESS PRODUCT DATA

Typical Test Data

Test Item	Result	Method
Density (20℃), g/cm³	0.845	ASTM D4052
Colour Scale	L0.5	ASTM D1500
Kinematic Viscosity (-30℃), mm²/s	4550	ASTM D445
Kinematic Viscosity (40℃), mm²/s	44.1	ASTM D445
Kinematic Viscosity (100℃), mm²/s	10.55	ASTM D445
Viscosity Index	240	ASTM D2270
Pour Point, ℃	-48	ASTM D97
Flash Point (COC), ℃	200	ASTM D92
Water Separability, minutes	20	ASTM D1401

Health, Safety & Environment

The product is unlikely to present any significant health or safety hazard when properly used in the recommended application, and good standards of personal hygiene are maintained.
Avoid contact with skin. Use impervious gloves with used oil. After skin contact, wash immediately with soap and water.
Take used oil to an authorised collection point. Do not discharge into drains, soil or water

Storage

All packages should be stored under cover. Where outside storage is unavoidable, drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, exposed to direct sunlight or freezing conditions.

The indicated properties are typical of those obtained with normal production tolerance and do not constitute a specification. All the information contained in this document is considered accurate as of date of printing, and no warranty or representation, expressed or implied is made as to the accuracy of the data and information in this publication. The information contained herein is subject to change without notice.
