Heavy Duty Gear Oil GL-5 80W-90
Product Description
Heavy Duty Gear Oil GL-5 is an extreme pressure, anti -wear gear oil formulated with multi-purpose additives to provide excellent oxidation stability and corrosion protection for extreme speed/load conditions such as low to medium speed bevel or spur gears, spiral bevel gears and hyperbolic spines and helps to extend oil change interval.

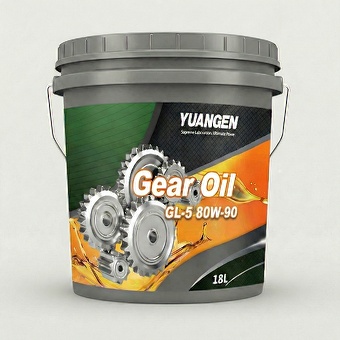

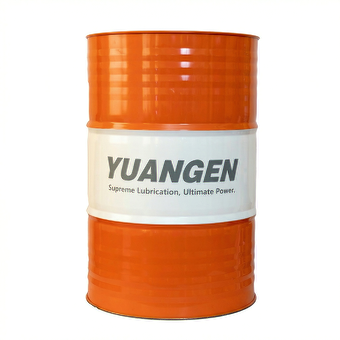

• Packaging: 18L, 200L
• Customized packaging available upon request
Specifications and Approvals
- • API GL-5/MT-1
- • MIL L-2105D
- • ZF TE-ML 16D/21A
- • ZF TE-ML 05A, 12E
- • ZF-TE-ML 07A/08
Performance Benefits
-
• Longer oil drain intervalhigh-quality additives help to achieve longer oil drain interval, provide better oxidation stability, low temperature performance and to extend the life of the oil.
-
• Longer gear lifeanti-wear protection is significantly improved to extend gearbox components life. Excellent oxidation resistance helps to reduce deposit formation in shaft and manual transmissions.
-
• Selected formulaselected additive formulations enhance wear protection effectively at high temperatures and provide excellent oxidation stability, corrosion resistance and good compatibility with non-ferrous metals.
Applications
Heavy Duty Gear Oil GL-5 80W-90 is recommended for heavy-duty axles and non-synchronous transmissions, as well as medium and heavy-duty gear pairs in fixed and supporting equipment. It is suitable for hypoid gear shafts and other automotive transmissions operating under high speed/impact loads, high speed/low torque, and low speed/high torque conditions.
Get detailed product specifications and have our technical experts confirm whether this formulation is suitable for your equipment.
ACCESS PRODUCT DATA
Typical Test Data
Test Item | Result | Method |
Density (20℃), g/cm³ | 0.871 | ASTM D4052 |
Kinematic Viscosity (100℃), mm²/s | 14.4 | ASTM D445 |
Kinematic Viscosity (40℃), mm²/s | 138.5 | ASTM D445 |
Viscosity Index | 102 | ASTM D2270 |
Pour Point, ℃ | -33 | ASTM D97 |
Flash Point (COC), ℃ | 220 | ASTM D92 |
Health, Safety & Environment
The product is unlikely to present any significant health or safety hazard when properly used in the recommended application, and good standards of personal hygiene are maintained.
Avoid contact with skin. Use impervious gloves with used oil. After skin contact, wash immediately with soap and water.
Take used oil to an authorised collection point. Do not discharge into drains, soil or water.
Avoid contact with skin. Use impervious gloves with used oil. After skin contact, wash immediately with soap and water.
Take used oil to an authorised collection point. Do not discharge into drains, soil or water.
Storage
All packages should be stored under cover. Where outside storage is unavoidable, drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, exposed to direct sunlight or freezing conditions.
The indicated properties are typical of those obtained with normal production tolerance and do not constitute a specification. All the information contained in this document is considered accurate as of date of printing, and no warranty or representation, expressed or implied is made as to the accuracy of the data and information in this publication. The information contained herein is subject to change without notice.
